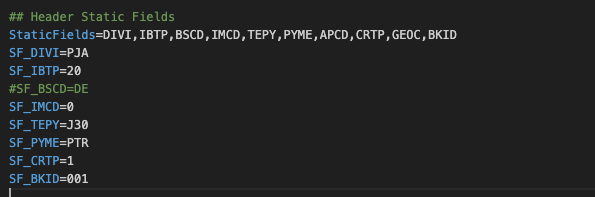

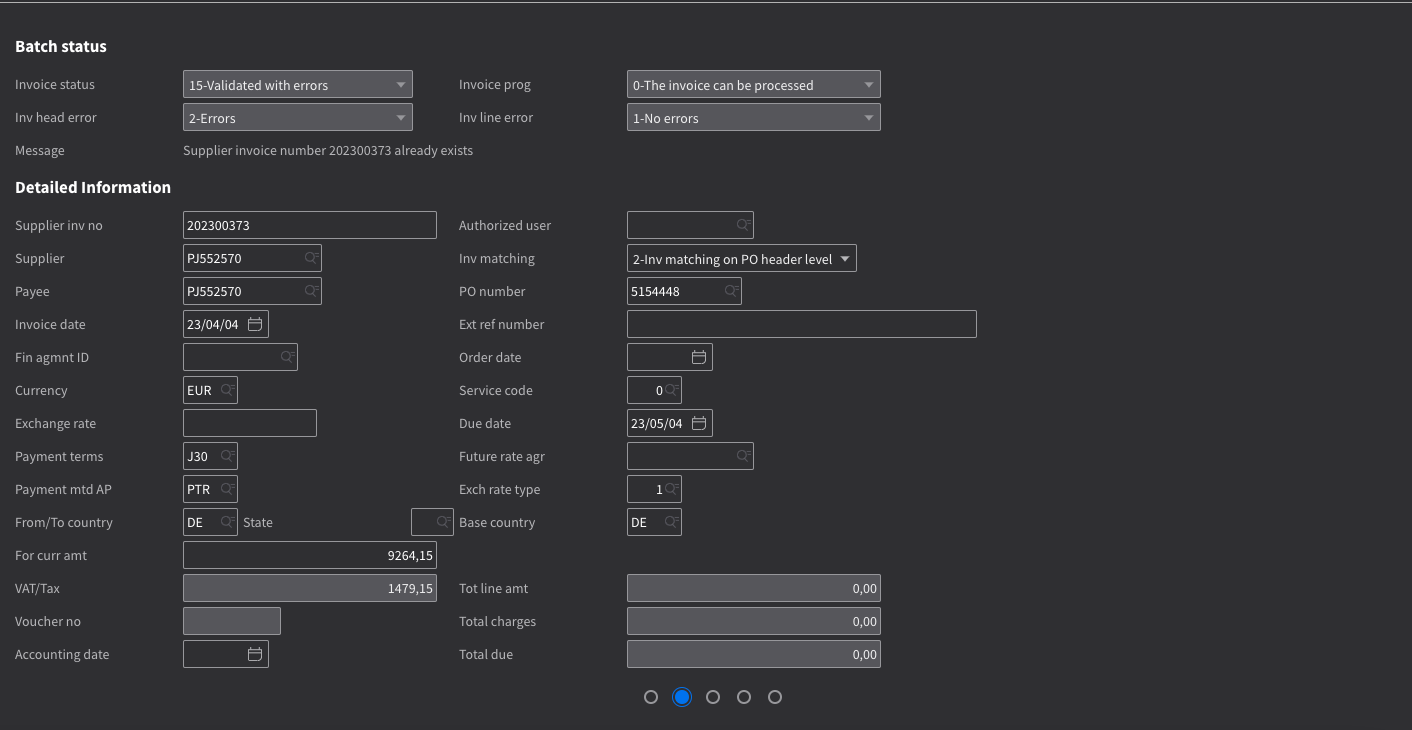

# Export to M3 Mapping (API) ### Sections M3 export mapping file is divided in 5 sections and each section is further divided into 2 sections * Header * Header Static Fields * Header Fields * Tax Lines * Tax Line Static Fields * Tax Line Fields * Receipt Lines * Receipt Line Static Fields * Receipt Line Fields * Order Charge Lines (Additional Amounts) * Order Charge Static Fields * Order Charge Fields * Cost Lines * Cost Line Static Fields * Cost Line Fields ### Adding and Removing Fields Adding New Field: * First we need to add the **M3 api field name** to the relevant section’s fields list property (e.g. StaticFields, HeaderFields, InvoiceTaxFields) * Define the static value or document field name for the api field with appropriate prefix for the section * Example 1: To define a static value of **AAA** for the M3 api field **DIVI.** First we added DIVI to **StaticFields** property. Then we add a line **SF\_DIVI = AAA** as SF\_ is the prefix for static fields * Example2: To map header field **IVDT (invoice data)** to invoice\_date field of DocBits. First we add IVDT to **HeaderFields** property. Then we add a line HF\_IVDT = invoice\_date as HF\_ is the prefix for header fields Removing Field: * Just remove the field from section’s field list property and remove the line defining value for the field. #### **Available M3 Api Fields:** * Available M3 fields can be checked by opening appropriate screen in M3.

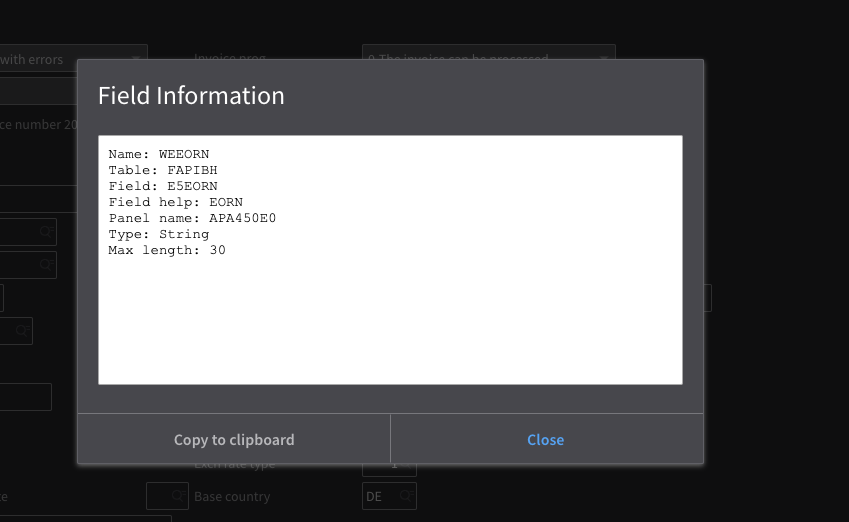

* Similarly you can get field names for lines ### Header:
Fields List Property: StaticFields Section Fields Prefix: SF\_ Available Fields: You can map any M3 api field with any static value #### **Header Fields** Fields List Property: HeaderFields Section Fields Prefix: HF\_ Available Fields: You can map any DocBits field to any M3 api field ### Tax Line: #### Tax Line Static Fields: Fields List Property: InvoiceTaxStaticFields Section Fields Prefix: IT\_SF\_ Available M3 Fields: Please check M3 API or UI Available DocBits Fields: You can put any value as they are static fields #### Tax Line Fields: Fields List Property: InvoiceTaxFields M3 Fields Prefix: ITF\_ DocBits Table Field Prefix: TF\_ Available M3 Fields: Please check M3 API or UI Available DocBits Fields: line\_number, tax\_amount, tax\_rate, net\_amount, gross\_amount, tax\_code\_full, tax\_code, tax\_country ### Receipt Line: #### Receipt Line Static Fields: Fields List Property: InvoiceReceiptStaticFields Section Fields Prefix: IR\_SF\_ Available M3 Fields: Please check M3 API or UI Available DocBits Fields: You can put any value as they are static fields #### Receipt Line Fields: Fields List Property: InvoiceReceiptFields M3 Fields Prefix: IRF\_ DocBits Table Field Prefix: TF\_ Available M3 Fields: Please check M3 API or UI Available DocBits Fields: packing\_slip, purchase\_order, line\_number, line\_sequence, delivery\_number, delivery\_line, amount, quantity, total\_net\_amount ### Order Charge Line: #### Order Charge Static Fields: Fields List Property: OrderChargeStaticFields Section Fields Prefix: OC\_SF\_ Available M3 Fields: Please check M3 API or UI Available DocBits Fields: You can put any value as they are static fields #### Order Charge Fields: Fields List Property: OrderChargeFields M3 Fields Prefix: OCF\_ DocBits Table Field Prefix: TF\_ Available M3 Fields: Please check M3 API or UI Available DocBits Fields: ledger\_account, dimension\_2-7, amount, quantity, quantity2, position ### Cost Line: #### Cost Line Static Fields: Fields List Property: InvoiceCostStaticFields Section Fields Prefix: IC\_SF\_ Available M3 Fields: Please check M3 API or UI Available DocBits Fields: You can put any value as they are static fields #### Cost Line Fields: Fields List Property: InvoiceCostFields M3 Fields Prefix: ICF\_ DocBits Table Field Prefix: TF\_ Available M3 Fields: Please check M3 API or UI Available DocBits Fields: ledger\_account, dimension\_1-12, amount, quantity, quantity2, position New update ``` ########################### # Header ########################### ## Header Static Fields StaticFields=DIVI,IBTP,BSCD,IMCD,TEPY,PYME,APCD,CRTP,GEOC,CONO,BKID SF_DIVI=AAA SF_IBTP=20 SF_CONO=780 #SF_BSCD=DE SF_IMCD=0 SF_TEPY=N00 SF_PYME=SCT SF_APCD=FABCEO SF_CRTP=1 SF_GEOC=60290522 ## Header Fields HeaderFields=SUNO,IVDT,SINO,SPYN,CUCD,CUAM,VTAM,ACDT,SERS,FTCO,BSCD,PUNO,TXAP,CORI,PAIN,BKID HF_SUNO=supplier_id HF_IVDT=invoice_date HF_SINO=invoice_id HF_SPYN=supplier_id HF_CUCD=currency HF_CUAM=total_net_amount #HF_VTAM=total_tax_amount HF_ACDT=invoice_date #HF_SERS=invoice_sub_type HF_FTCO=supplier_country_code HF_PUNO=purchase_order HF_TXAP=tax_country_1 HF_CORI = correlation_id HF_PAIN = sqr_field_esr_reference HF_BKID = custom_field_1 ########################### # Tax Line ########################### # ## Tax Line Static Fields # InvoiceTaxStaticFields=RDTP,DIVI,VTCD,CONO # IT_SF_RDTP=3 # IT_SF_DIVI=AAA # IT_SF_CONO=780 # ## Tax Line Fields # InvoiceTaxFields=VTCD,VTA1,VTP1,CLAM # ITF_VTCD=TF_tax_code # ITF_VTA1=TF_tax_amount # ITF_VTP1=TF_tax_rate # ITF_CLAM=TF_gross_amount ########################### # Receipt Line ########################### InvoiceReceipt=invoice_table ## Receipt Line Static Fields InvoiceReceiptStaticFields=RDTP,DIVI,SERS,RELP,VTCD,CONO IR_SF_RDTP=1 IR_SF_DIVI=AAA IR_SF_SERS=0 IR_SF_RELP=1 #IR_SF_VTCD=52 IR_SF_CONO=780 ## Receipt Line Fields InvoiceReceiptFields=IVQA,PUUN,PUNO,PNLI,ITNO,POPN,SUDO,NEPR,GRPR,PPUN,NLAM,GLAM IRF_IVQA = TF_quantity IRF_PUUN = TF_unit IRF_PUNO = TF_purchase_order IRF_PNLI = TF_line_number IRF_ITNO = TF_item_number IRF_POPN = TF_item_number IRF_SUDO = TF_packing_slip #IRF_NEPR = TF_net_unit_price IRF_GRPR = TF_gross_unit_price IRF_PPUN = TF_unit #IRF_NLAM = TF_net_amount IRF_GLAM = TF_total_amount ########################### # Order Charge Line ########################### OrderCharge=order_charges ## Order Charge Static Fields OrderChargeStaticFields=RDTP,DIVI,CONO OC_SF_RDTP=2 OC_SF_DIVI=AAA OC_SF_CONO=780 ## Order Charge Fields OrderChargeFields=NLAM,CHGT,CEID OCF_NLAM=TF_amount OCF_CHGT=TF_voucher_text OCF_CEID=TF_ledger_account ########################### # Cost Line ########################### InvoiceCost=cost_lines ## Cost Line Static Fields InvoiceCostStaticFields=RDTP,DIVI,CONO IC_SF_RDTP=8 IC_SF_DIVI=AAA IC_SF_CONO=780 ## Cost Line Fields InvoiceCostFields=NLAM,VTXT,AO01,AO02,AO03,AO04,AO05,AO06,AO07,VTCD,AIT1,AIT2,AIT3,AIT4,AIT5,AIT6,AIT7,VTP1,VTP2 ICF_NLAM=TF_amount ICF_VTXT=TF_voucher_text ICF_AIT1=TF_ledger_account ICF_AIT2=TF_dimension_2 ICF_AIT3=TF_dimension_3 ICF_AIT4=TF_dimension_4 ICF_AIT5=TF_dimension_5 ICF_AIT6=TF_dimension_6 ICF_AIT7=TF_dimension_7 ICF_AO01=TF_accounting_object_1 ICF_AO02=TF_accounting_object_2 ICF_AO03=TF_accounting_object_3 ICF_AO04=TF_accounting_object_4 ICF_AO05=TF_accounting_object_5 ICF_AO06=TF_accounting_object_6 ICF_AO07=TF_accounting_object_7 ``` ### For US Customer we update this mapping to V3 ```` ``` # Changes from Version 2 to Version 3:# -StaticFields=DIVI,IBTP,BSCD,IMCD,TEPY,PYME,APCD,CRTP,GEOC,BKID # -SF_DIVI=PJA # +StaticFields=DIVI,IBTP,BSCD,IMCD,TEPY,PYME,APCD,CRTP,CONO,GEOC # +SF_DIVI=RFP # +SF_CONO=001 # -SF_TEPY=J30 # -SF_PYME=PTR # +#SF_TEPY=N00 # +#SF_PYME=CSH # +#SF_APCD=MHIDALGO # -SF_BKID=001 # +SF_GEOC=999999999 # +#SF_BKID=DJ1 # -HeaderFields=SUNO,IVDT,SINO,SPYN,CUCD,CUAM,VTAM,ACDT,SERS,FTCO,BSCD,PUNO,TXAP,CORI,PAIN # +HeaderFields=SUNO,IVDT,SINO,SPYN,CUCD,CUAM,VTAM,ACDT,SERS,FTCO,BSCD,PUNO,TXAP,CORI,PAIN,TCHG,CDC1,APCD,TEPY,PYME,BKID # -HF_CUAM=total_net_amount # +HF_CUAM=total_net_amount_us # -HF_ACDT=invoice_date # +#HF_ACDT=invoice_date # -HF_CORI = correlation_id # -HF_PAIN = sqr_field_esr_reference # - # +HF_CORI=correlation_id # +HF_PAIN=sqr_field_esr_reference # +HF_TCHG=additional_amount # +HF_CDC1=negative_amount # +HF_APCD=buyer_id # +HF_TEPY=payment_terms # +HF_PYME=payment_method # +HF_BKID=bank_id # +#HF_GEOC=supplier_geoc # -## Tax Line Static Fields # -InvoiceTaxStaticFields=RDTP,DIVI,VTCD # -IT_SF_RDTP=3 # -IT_SF_DIVI=PJA # +# ## Tax Line Static Fields # +# InvoiceTaxStaticFields=RDTP,DIVI,VTCD,CONO # +# IT_SF_RDTP=3 # +# IT_SF_DIVI=AAA # +# IT_SF_CONO=780 # -## Tax Line Fields # -InvoiceTaxFields=VTCD,VTA1,VTP1,CLAM # -ITF_VTCD=TF_tax_code # -ITF_VTA1=TF_tax_amount # -ITF_VTP1=TF_tax_rate # -ITF_CLAM=TF_gross_amount # +# ## Tax Line Fields # +# InvoiceTaxFields=VTCD,VTA1,VTP1,CLAM # +# ITF_VTCD=TF_tax_code # +# ITF_VTA1=TF_tax_amount # +# ITF_VTP1=TF_tax_rate # +# ITF_CLAM=TF_gross_amount # -InvoiceReceiptStaticFields=RDTP,DIVI,SERS,RELP,VTCD # +InvoiceReceiptStaticFields=RDTP,DIVI,SERS,RELP,VTCD,CONO # -IR_SF_DIVI=PJA # -IR_SF_SERS=0 # +IR_SF_DIVI=RFP # -IR_SF_VTCD=52 # +#IR_SF_VTCD=52 # +IR_SF_CONO=001 # -InvoiceReceiptFields=IVQA,PUUN,PUNO,PNLI,ITNO,POPN,SUDO,NEPR,GRPR,PPUN,NLAM,GLAM # +InvoiceReceiptFields=IVQA,PUUN,PUNO,PNLI,ITNO,POPN,SUDO,NEPR,GRPR,PPUN,NLAM,GLAM,TCHG,CDC1 # -#IRF_PUNO = TF_purchase_order # -#IRF_PNLI = TF_line_number # +IRF_PUNO = TF_purchase_order # +IRF_PNLI = TF_line_number # -#IRF_NEPR = TF_net_unit_price # +IRF_NEPR = TF_net_unit_price # -IRF_PPUN = TF_unit # -#IRF_NLAM = TF_net_amount # +IRF_PPUN = TF_unit_code_price # +IRF_NLAM = TF_net_amount # +IRF_TCHG = TF_charges # +IRF_CDC1 = TF_discount # -OrderChargeStaticFields=RDTP,DIVI # +OrderChargeStaticFields=RDTP,DIVI,CONO # -OC_SF_DIVI=PJA # +OC_SF_DIVI=RFP # +OC_SF_CONO=001 # -InvoiceCostStaticFields=RDTP,DIVI # +InvoiceCostStaticFields=RDTP,DIVI,CONO # -IC_SF_DIVI=PJA # +IC_SF_DIVI=RFP # +IC_SF_CONO=001 ########################### # Header ########################### ## Header Static Fields StaticFields=DIVI,IBTP,BSCD,IMCD,TEPY,PYME,APCD,CRTP,CONO,GEOC SF_DIVI=RFP SF_IBTP=20 SF_CONO=001 #SF_BSCD=DE SF_IMCD=0 #SF_TEPY=N00 #SF_PYME=CSH #SF_APCD=MHIDALGO SF_CRTP=1 SF_GEOC=999999999 #SF_BKID=DJ1 ## Header Fields HeaderFields=SUNO,IVDT,SINO,SPYN,CUCD,CUAM,VTAM,ACDT,SERS,FTCO,BSCD,PUNO,TXAP,CORI,PAIN,TCHG,CDC1,APCD,TEPY,PYME,BKID HF_SUNO=supplier_id HF_IVDT=invoice_date HF_SINO=invoice_id HF_SPYN=supplier_id HF_CUCD=currency HF_CUAM=total_net_amount_us #HF_VTAM=total_tax_amount #HF_ACDT=invoice_date #HF_SERS=invoice_sub_type HF_FTCO=supplier_country_code HF_PUNO=purchase_order HF_TXAP=tax_country_1 HF_CORI=correlation_id HF_PAIN=sqr_field_esr_reference HF_TCHG=additional_amount HF_CDC1=negative_amount HF_APCD=buyer_id HF_TEPY=payment_terms HF_PYME=payment_method HF_BKID=bank_id #HF_GEOC=supplier_geoc ########################### # Tax Line ########################### # ## Tax Line Static Fields # InvoiceTaxStaticFields=RDTP,DIVI,VTCD,CONO # IT_SF_RDTP=3 # IT_SF_DIVI=AAA # IT_SF_CONO=780 # ## Tax Line Fields # InvoiceTaxFields=VTCD,VTA1,VTP1,CLAM # ITF_VTCD=TF_tax_code # ITF_VTA1=TF_tax_amount # ITF_VTP1=TF_tax_rate # ITF_CLAM=TF_gross_amount ########################### # Receipt Line ########################### InvoiceReceipt=invoice_table ## Receipt Line Static Fields InvoiceReceiptStaticFields=RDTP,DIVI,SERS,RELP,VTCD,CONO IR_SF_RDTP=1 IR_SF_DIVI=RFP IR_SF_RELP=1 #IR_SF_VTCD=52 IR_SF_CONO=001 ## Receipt Line Fields InvoiceReceiptFields=IVQA,PUUN,PUNO,PNLI,ITNO,POPN,SUDO,NEPR,GRPR,PPUN,NLAM,GLAM,TCHG,CDC1 IRF_IVQA = TF_quantity IRF_PUUN = TF_unit IRF_PUNO = TF_purchase_order IRF_PNLI = TF_line_number IRF_ITNO = TF_item_number IRF_POPN = TF_item_number IRF_SUDO = TF_packing_slip IRF_NEPR = TF_net_unit_price IRF_GRPR = TF_gross_unit_price IRF_PPUN = TF_unit_code_price IRF_NLAM = TF_net_amount IRF_GLAM = TF_total_amount IRF_TCHG = TF_charges IRF_CDC1 = TF_discount ########################### # Order Charge Line ########################### OrderCharge=order_charges ## Order Charge Static Fields OrderChargeStaticFields=RDTP,DIVI,CONO OC_SF_RDTP=2 OC_SF_DIVI=RFP OC_SF_CONO=001 ## Order Charge Fields OrderChargeFields=NLAM,CHGT,CEID OCF_NLAM=TF_amount OCF_CHGT=TF_voucher_text OCF_CEID=TF_ledger_account ########################### # Cost Line ########################### InvoiceCost=cost_lines ## Cost Line Static Fields InvoiceCostStaticFields=RDTP,DIVI,CONO IC_SF_RDTP=8 IC_SF_DIVI=RFP IC_SF_CONO=001 ## Cost Line Fields InvoiceCostFields=NLAM,VTXT,AO01,AO02,AO03,AO04,AO05,AO06,AO07,VTCD,AIT1,AIT2,AIT3,AIT4,AIT5,AIT6,AIT7,VTP1,VTP2 ICF_NLAM=TF_amount ICF_VTXT=TF_voucher_text ICF_AIT1=TF_ledger_account ICF_AIT2=TF_dimension_2 ICF_AIT3=TF_dimension_3 ICF_AIT4=TF_dimension_4 ICF_AIT5=TF_dimension_5 ICF_AIT6=TF_dimension_6 ICF_AIT7=TF_dimension_7 ICF_AO01=TF_accounting_object_1 ICF_AO02=TF_accounting_object_2 ICF_AO03=TF_accounting_object_3 ICF_AO04=TF_accounting_object_4 ICF_AO05=TF_accounting_object_5 ICF_AO06=TF_accounting_object_6 ICF_AO07=TF_accounting_object_7 ``` ````
