# 工作流日志
## **概述**
**工作流日志**允许用户分析某个文档执行了哪些工作流、了解执行结果，并深入查看条件级别的详细信息，以便进行调试或验证。
## **访问工作流日志**
要访问工作流日志：
1. 前往**仪表板**。
2. 点击所需文档旁的**操作菜单**（三点图标）。
3. 从菜单中选择**工作流日志**。
* **注意**：必须启用工作流功能才能访问此选项。
4. 将打开一个**侧边面板**，显示已执行工作流的摘要。\\
## **工作流日志面板的组成部分**
#### **1. 工作流摘要计数器**
位于日志面板顶部：
* **蓝色**：已执行工作流的总数。
* **红色**：以**错误**结束的工作流。
* **黄色**：因条件不匹配而**未完成**的工作流。
* **绿色**：已成功**执行**的工作流。

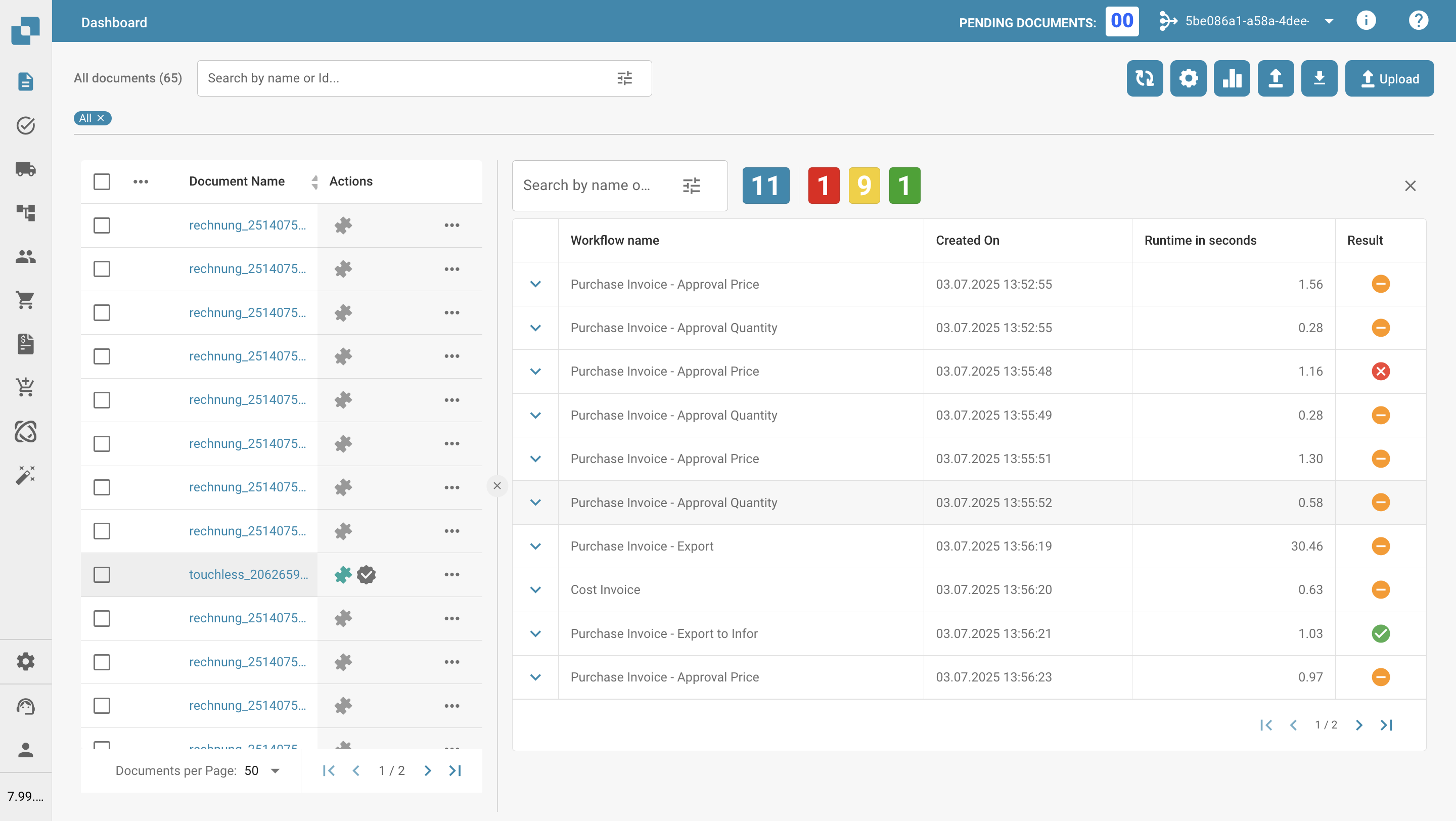

#### **2. 工作流执行表**
表格中的每一行代表一次工作流执行，包含：
* **工作流名称**
* **时间戳**（创建时间）
* **运行时间**（秒）
* **结果图标**：
* 绿色勾号：工作流已成功执行。
* 红色叉号：工作流执行时发生错误。
* 橙色短横线：由于未满足条件，执行已停止
点击每行左侧的**箭头**可展开**工作流详细信息视图**。

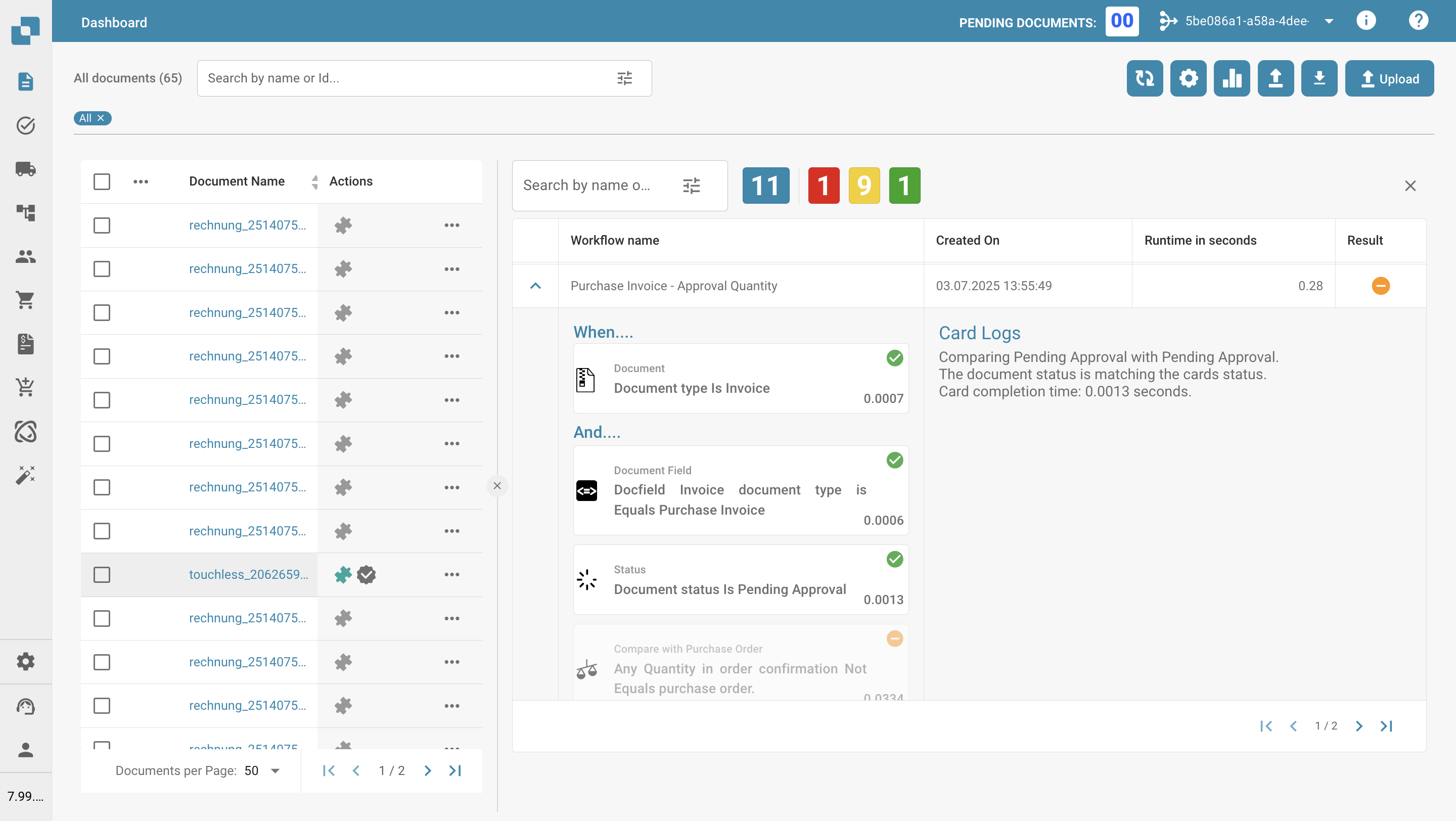

### **工作流详细信息视图**
点击某个工作流行会打开其**详细执行日志**，其中显示：
#### **条件评估**
* **When...** 区块：初始条件。
* **And...** 区块：附加条件。
* **Then...** 区块：所有条件均满足时执行的操作。
每个条件行会显示：
* **绿色勾号**：条件已满足。
* **橙色短横线**：条件未满足。
* **红色叉号**：条件因**错误而失败**
### **重要行为说明**
如果工作流中的某个条件**未满足**，系统会**停止评估该工作流中的所有后续工作流卡片**。此行为可避免不必要的处理\
作为视觉提示，**未满足其条件**的卡片会显示为**灰色**，同一工作流中的所有**后续卡片**也会显示为**灰色**，表示它们**尚未执行**。
---
