> For the complete documentation index, see [llms.txt](https://docs.docbits.com/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://docs.docbits.com/chinese/guan-li-yu-she-zhi/workflow/advanced-workflow-builder.md). # 高级工作流 **高级工作流**构建器是一种节点图编辑器，适用于需要分支、并行路径和流程控制的工作流，可实现标准构建器中线性的 When/And/Then 流程无法满足的需求。你可以在画布上排列节点并将它们连接起来，以定义执行流程。 {% embed url="" %} 高级工作流设计器 {% endembed %} ## 如何访问从工作流区域（高级构建器画布）打开高级工作流设计器。你可以从 **Start** 节点开始，通过添加节点逐步构建流程。

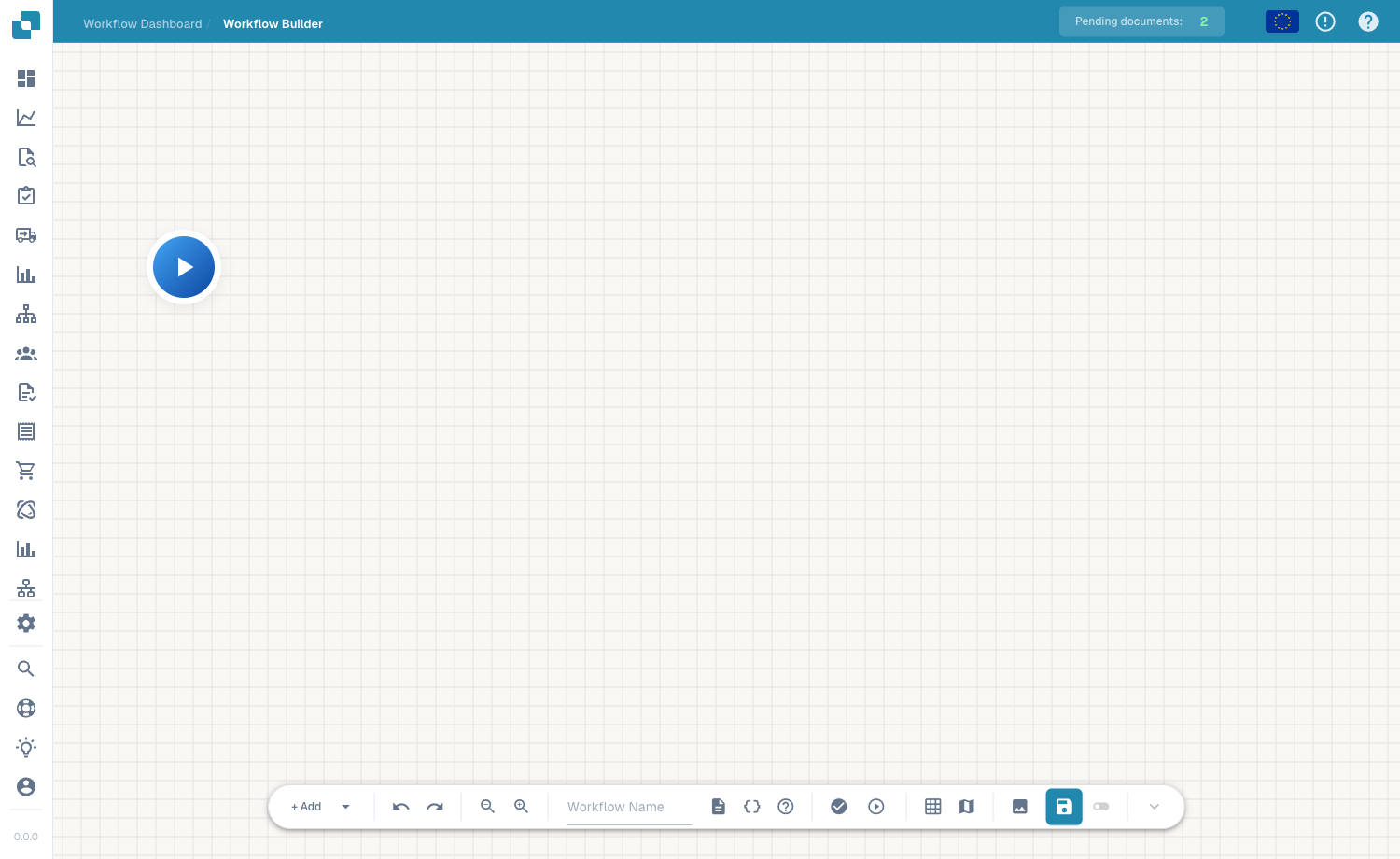

包含工具栏的高级工作流节点图画布 — 高级工作流画布——包含缩放、运行、网格和保存控件的节点图。请在工具栏中为工作流命名。

## 添加节点点击 **+ Add** 打开节点菜单。除了熟悉的 **When**、**And** 和 **Then** 卡片，高级构建器还提供流程控制节点：

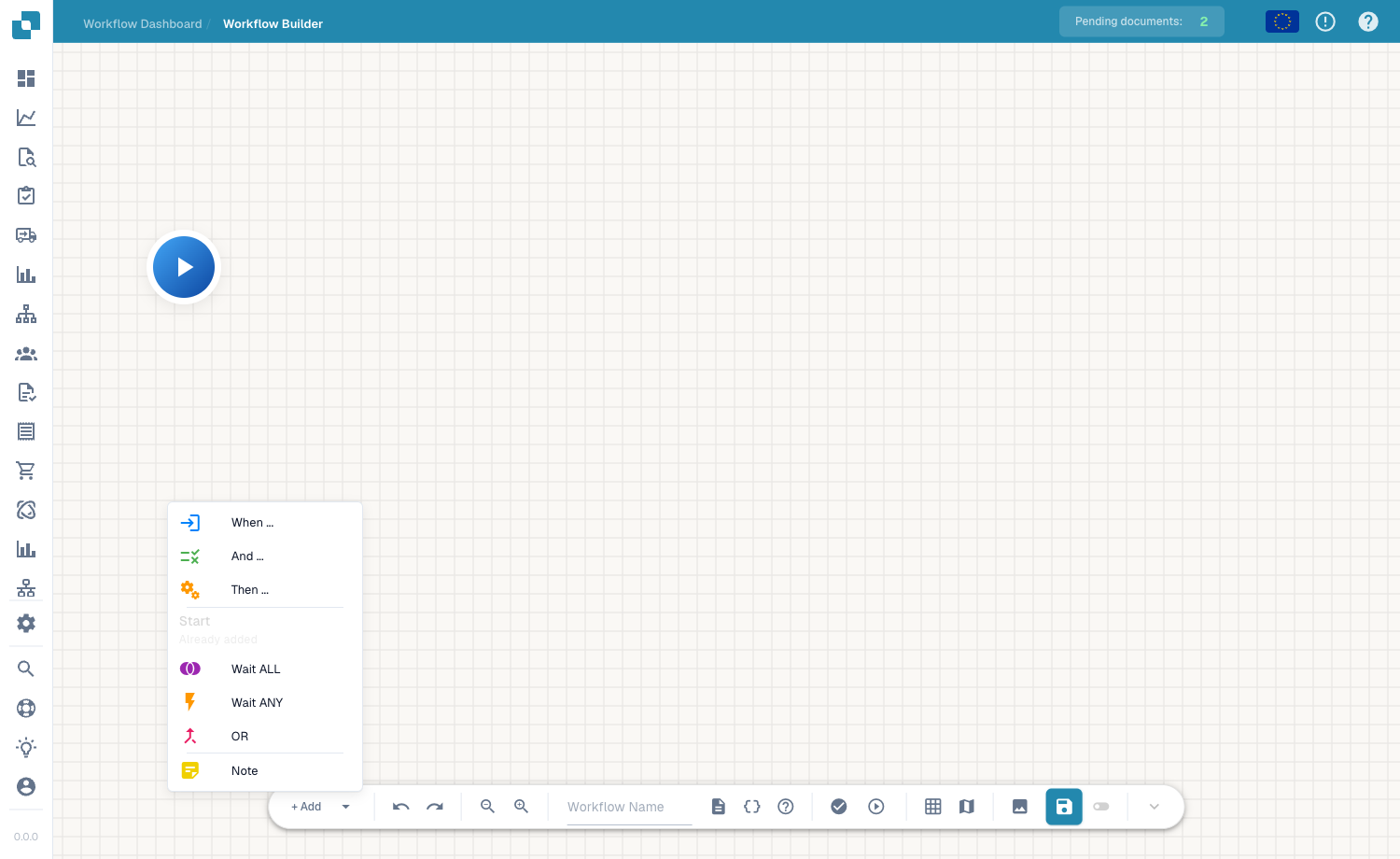

包含节点类型的高级工作流 Add 菜单 — **+ Add** 节点菜单：When / And / Then，以及 Wait ALL、Wait ANY、OR 和 Note。

* **When / And / Then** — 与标准构建器中的条件卡片和操作卡片相同。 * **Wait ALL** — 等待所有传入分支完成后再继续。 * **Wait ANY** — 任意一个传入分支完成后立即继续。 * **OR** — 将流程分支到不同的替代路径。 * **Note** — 在画布上添加自由文本注释（不影响执行）。使用播放控件运行流程，验证流程，并点击工具栏中的保存按钮保存。 ## 后续步骤 * 在 **Cards** 部分了解每种卡片的功能。 * 对于简单的线性自动化，使用 **Standard Workflow** 构建器可以更快完成设置。 --- # Agent Instructions This documentation is published with GitBook. GitBook is the documentation platform designed so that both humans and AI agents can read, navigate, and reason over technical content effectively. Learn more at gitbook.com. ## Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation by asking a question. Perform an HTTP GET request on the following URL with the `ask` and `goal` query parameters: ``` GET https://docs.docbits.com/chinese/guan-li-yu-she-zhi/workflow/advanced-workflow-builder.md?ask=&goal= ``` `ask` is the immediate question: it should be specific, self-contained, and written in natural language. `goal` is what the user is ultimately trying to achieve, the reason they need the answer. Sharing it helps GitBook give you a better, more relevant answer. A goal is most helpful when it describes the outcome the user wants rather than restating the question. For example, with `ask=how do I create an API token`, a goal like `automate deployments from our CI pipeline` lets GitBook tailor the answer to that use case. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
