> For the complete documentation index, see [llms.txt](https://docs.docbits.com/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://docs.docbits.com/chinese/guan-li-yu-she-zhi/settings/supplier-setting/export-configuration-for-supplier-portal-for-m3.md). # 适用于 M3 的供应商门户导出配置
供应商导出配置

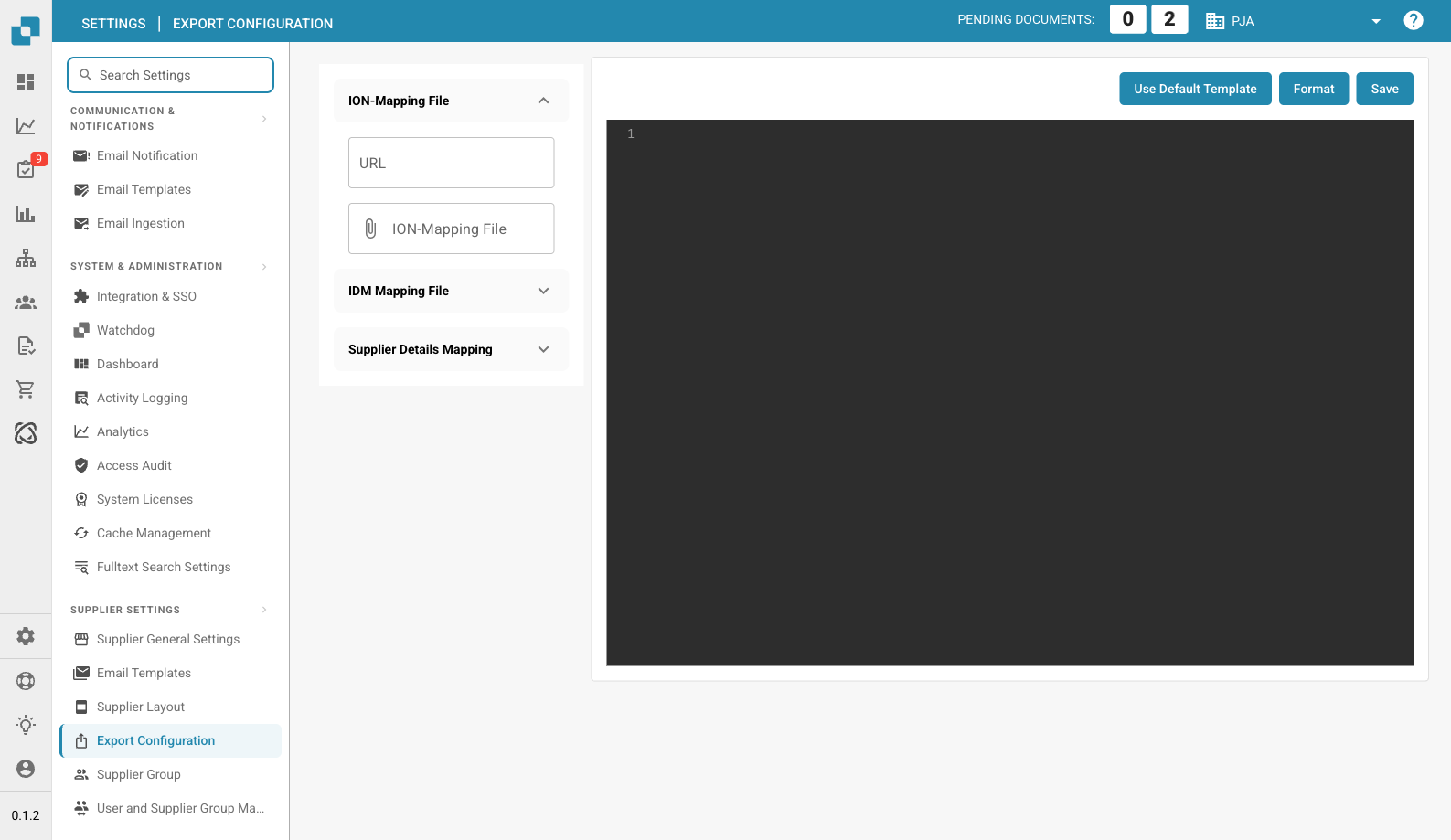

供应商导出配置页面

## 概述 导出配置文件是供应商门户中的关键组件，用于定义供应商门户与 ERP 系统之间的数据映射方式。此配置可确保数据在各系统间准确传输和同步，从而支持顺畅、高效的运营。 ## 配置文件结构 导出配置文件采用 JSON 对象结构，其中包含多个映射。每个映射都关联到 ERP 系统中的一个特定程序，并定义要执行的操作、要映射的字段以及要应用的条件。 ## 主要组成部分 ### 1. 程序 * **定义**：指定此映射适用的 ERP 程序。 * **示例**：`"program": "CRS620MI"` ### 2. 操作 * **定义**：定义可以执行的操作，例如添加或更新记录。 * **示例**： ```json "actions": { "add": "AddSupplier", "update": "UpdSupplier" } ``` ### 3. 映射 • 定义：指定 ERP 系统中的字段与供应商门户中的字段之间的映射。 • 组成部分： • erp\_field\_name：ERP 系统中的字段名称。 • value\_field\_name：供应商门户中对应的字段名称。 • value：如果供应商门户中没有对应字段，则使用此静态值。 • if\_conditions：可选条件，用于根据特定条件确定值。 • 示例： ```json { "erp_field_name": "SUNO", "value_field_name": "supplier_number" } ``` ### 4. 条件逻辑 (if\_conditions) • 定义：指定使用某个值必须满足的条件。 • 组成部分： • field\_name：要进行评估的供应商门户字段名称。 • field\_value：触发条件的值。 • then\_value：满足条件时要使用的值。 • 示例： ```json { "erp_field_name": "SUTY", "value": "0", "if_conditions": [{ "field_name": "supplier_group", "field_value": "FRT", "then_value": "5" }] } ``` ### 5. 循环 (loop\_on) • 定义：指定配置应遍历项目列表的部分，例如地址或参考信息。 • 示例： ```json "loop_on": "address_details" ``` ### 6. 计算字段 (value\_field\_calculated) • 定义：指定应在运行时计算的字段，例如生成当前日期。 • 示例： ```json { "erp_field_name": "STDT", "value_field_calculated": "now()" } ``` ### 7. 包含列表的字段映射 (mapping\_field\_name and mapping\_list) • 定义：根据预定义列表，将供应商门户中的特定值映射为 ERP 系统中的对应值。 • 组成部分： • mapping\_field\_name：用于确定映射关系的字段。 • mapping\_list：将供应商门户中的值转换为 ERP 系统中的值的字典。 • 示例： ```json { "erp_field_name": "RFID", "mapping_field_name": "reference_type", "mapping_list": { "10": "PURCHASING", "15": "DLVRY PHN#", "20": "COA", "25": "QA", "30": "FINANCE", "35": "SALES" } } ``` ## 配置示例解析 ### 添加和更新供应商 (CRS620MI) • 程序：CRS620MI • 操作： • 添加供应商：AddSupplier • 更新供应商：UpdSupplier • 映射字段： • SUNO → supplier\_number • SUNM → name • CSCD → supplier\_country • TINO → tax\_id • 其他字段包括静态值和条件映射。 ### 地址详情 (CRS620MI) • 循环对象：***address\_details*** • 操作： • 添加地址：AddAddress • 更新地址：AddAddress • 映射字段： • SUNO → supplier\_number • ADR1 → address • TOWN → city • 其他字段包括计算字段，例如用于获取当前日期的 now()。 ### 参考信息 (CRS620MI) • 循环对象：***reference\_details*** • 操作： • 添加供应商参考信息：AddSupplierRef • 更新供应商参考信息：AddSupplierRef • 映射字段： • SUNO → supplier\_number • RFTY → reference\_type • RFID 使用列表进行映射，用于转换 “PURCHASING”、“QA” 和 “FINANCE” 等类型。 ## 使用导出配置 ### 1. 上传配置文件 #### 1. 前往导出配置： • 从主菜单进入“导出配置”部分。 #### 2. 上传配置文件： • 点击 ION-Mapping File 或 IDM Mapping File 部分，上传相应的配置文件。 #### 3. 保存配置： • 上传完成后，点击 Save 按钮以应用配置。 ### 2. 使用默认模板 • 如果要恢复为系统提供的默认配置模板，请点击 Use Default Template 按钮。 ### 3. 格式化 JSON • 使用 Format 按钮自动格式化 JSON 代码，以提高可读性。 ## 结论 此配置文件对于确保供应商门户与 ERP 系统之间的数据正确映射和同步至关重要。了解其结构和主要组成部分后，管理员即可有效管理和自定义导出流程，以满足具体的业务需求。 ## 完整示例 ```json [{ "program": "CRS620MI", "actions": { "add": "AddSupplier", "update": "UpdSupplier" }, "mapping": [{ "erp_field_name": "SUNO", "value_field_name": "supplier_number" }, { "erp_field_name": "SUNM", "value_field_name": "name" }, { "erp_field_name": "SUTY", "value": "0", "if_conditions": [{ "field_name": "supplier_group", "field_value": "FRT", "then_value": "5" }] }, { "erp_field_name": "CSCD", "value_field_name": "supplier_country" }, { "erp_field_name": "DTFM", "value_field_name": "date_format" }, { "erp_field_name": "ORTY", "value": "F20" }, { "erp_field_name": "DT4T", "value": "1" }, { "erp_field_name": "DTCD", "value": "2" }, { "erp_field_name": "CUCD", "value_field_name": "currency" }, { "erp_field_name": "TINO", "value_field_name": "tax_id" }, { "erp_field_name": "PHNO", "value_field_name": "supplier_phone" }, { "erp_field_name": "CRTP", "value": "1" }, { "erp_field_name": "ATPR", "value": "1" }, { "erp_field_name": "SUCL", "value_field_name": "supplier_group" }, { "erp_field_name": "LNCD", "value_field_name": "language" }, { "erp_field_name": "CONO", "value": "781_DDD" }, { "erp_field_name": "TEDL", "value": "FOB" }, { "erp_field_name": "TEPY", "value_field_name": "payment_term" }, { "erp_field_name": "TEPA", "value": "001" }, { "erp_field_name": "PYME", "value": "CRP" }] }, { "program": "CRS620MI", "loop_on": "address_details", "actions": { "add": "AddAddress", "update": "AddAddress" }, "mapping": [{ "erp_field_name": "SUNO", "main_value_field": "supplier_number" }, { "erp_field_name": "ADTE", "value_field_name": "address_type" }, { "erp_field_name": "ADID", "value_field_name": "address_type", "if_conditions": [{ "field_name": "address_type", "field_value": "10", "then_value": "" }] }, { "erp_field_name": "STDT", "value_field_calculated": "now()" }, { "erp_field_name": "ADR1", "value_field_name": "address" }, { "erp_field_name": "TOWN", "value_field_name": "city" }, { "erp_field_name": "ECAR", "value_field_name": "state" }, { "erp_field_name": "PONO", "value_field_name": "postal_code" }, { "erp_field_name": "CSCD", "value_field_name": "supplier_country" }] }, { "program": "CRS620MI", "loop_on": "reference_details", "actions": { "add": "AddSupplierRef", "update": "AddSupplierRef" }, "mapping": [{ "erp_field_name": "SUNO", "main_value_field": "supplier_number" }, { "erp_field_name": "RFTY", "value_field_name": "reference_type" }, { "erp_field_name": "RFID", "mapping_field_name": "reference_type", "mapping_list": { "10": "PURCHASING", "15": "DLVRY PHN#", "20": "COA", "25": "QA", "30": "FINANCE", "35": "SALES" } }, { "erp_field_name": "YRE1", "value_field_name": "reference_name" }, { "erp_field_name": "PHNO", "value_field_name": "telephone_no" }, { "erp_field_name": "EMAL", "value_field_name": "email_address" }] }] ``` --- # Agent Instructions This documentation is published with GitBook. GitBook is the documentation platform designed so that both humans and AI agents can read, navigate, and reason over technical content effectively. Learn more at gitbook.com. ## Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation by asking a question. Perform an HTTP GET request on the following URL with the `ask` and `goal` query parameters: ``` GET https://docs.docbits.com/chinese/guan-li-yu-she-zhi/settings/supplier-setting/export-configuration-for-supplier-portal-for-m3.md?ask=&goal= ``` `ask` is the immediate question: it should be specific, self-contained, and written in natural language. `goal` is what the user is ultimately trying to achieve, the reason they need the answer. Sharing it helps GitBook give you a better, more relevant answer. A goal is most helpful when it describes the outcome the user wants rather than restating the question. For example, with `ask=how do I create an API token`, a goal like `automate deployments from our CI pipeline` lets GitBook tailor the answer to that use case. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
