# 导航布局构建器

使用 **Layout Builder（布局构建器）** 来排列用户在文档上看到的字段和分组。本指南以沙盒组织中的英文 **Invoice（发票）** 布局为例。

## 打开 Invoice 布局

1. 前往 **Settings → Document Types**。
2. 找到 **Invoice**，然后在其卡片上选择 **Layouts**。此时会打开该文档类型的布局构建器。
3. 查看左上角的布局选择器。下方示例显示的是 **DEFAULT**。

<figure><img src="https://1870485400-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlPczlNw8zzYNLfjfispX%2Fuploads%2Fgit-blob-af5549d806a46d7d3cee72d5ba99ad860ccce580%2Fdbdc177-document-types-en.png?alt=media" alt="英文 Document Types 页面，其中显示 Invoice 卡片及其 Layouts 链接"><figcaption><p>在 Invoice 卡片上打开 **Layouts**。</p></figcaption></figure>

## 查找分组和字段

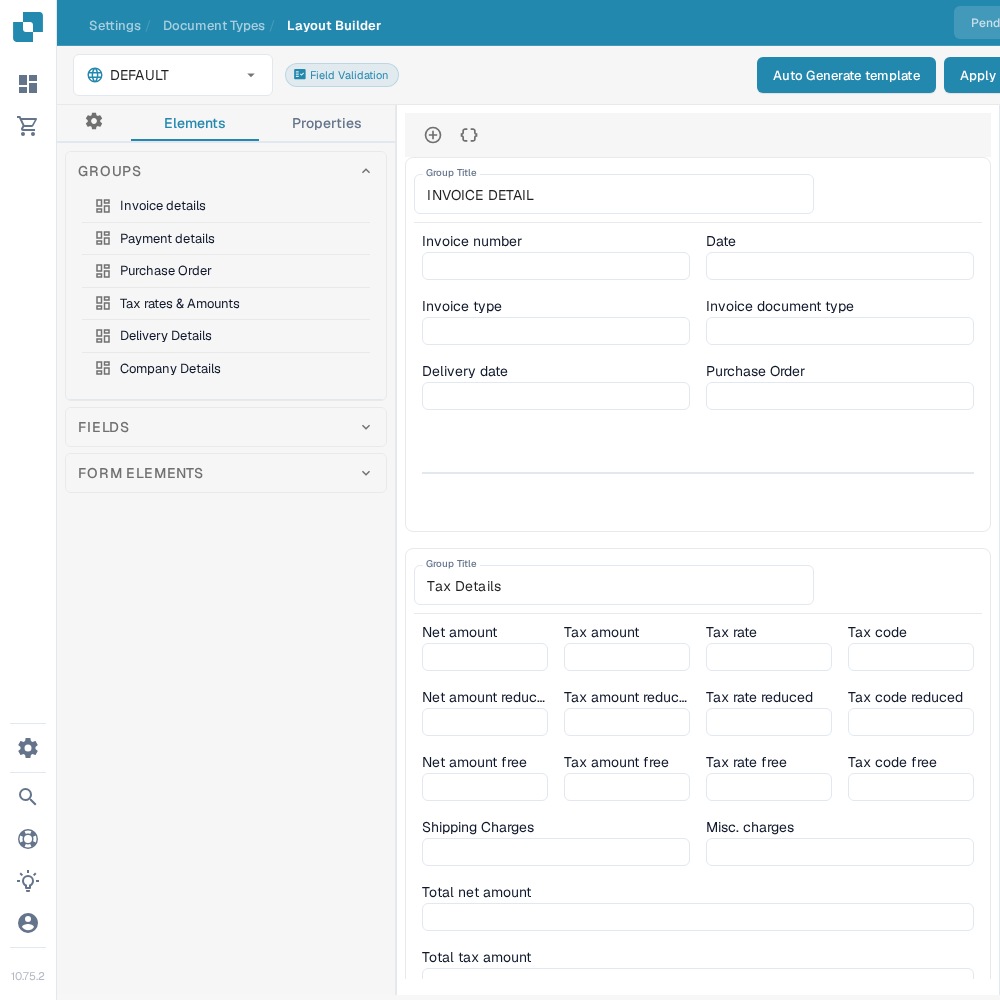

左侧的 **Elements** 面板包含三个部分。**Groups** 列出文档分区；中间的画布显示这些分区当前的排列方式。在画布中选择一个字段，然后打开 **Properties** 以更改其显示设置。可用选项请参阅[配置字段属性](/chinese/guan-li-yu-she-zhi/settings/global-settings/document-types/layout-manager/configuring-field-properties.md)。

<figure><img src="https://1870485400-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlPczlNw8zzYNLfjfispX%2Fuploads%2Fgit-blob-8a7883d30a3aed3573e8ce2c45c3955aec529926%2Fdbdc177-layout-elements-en.png?alt=media" alt="英文 Invoice Layout Builder，显示 Elements 面板中的 Groups 以及画布中已分组的字段"><figcaption><p>Groups 列表和 Invoice 布局画布。</p></figcaption></figure>

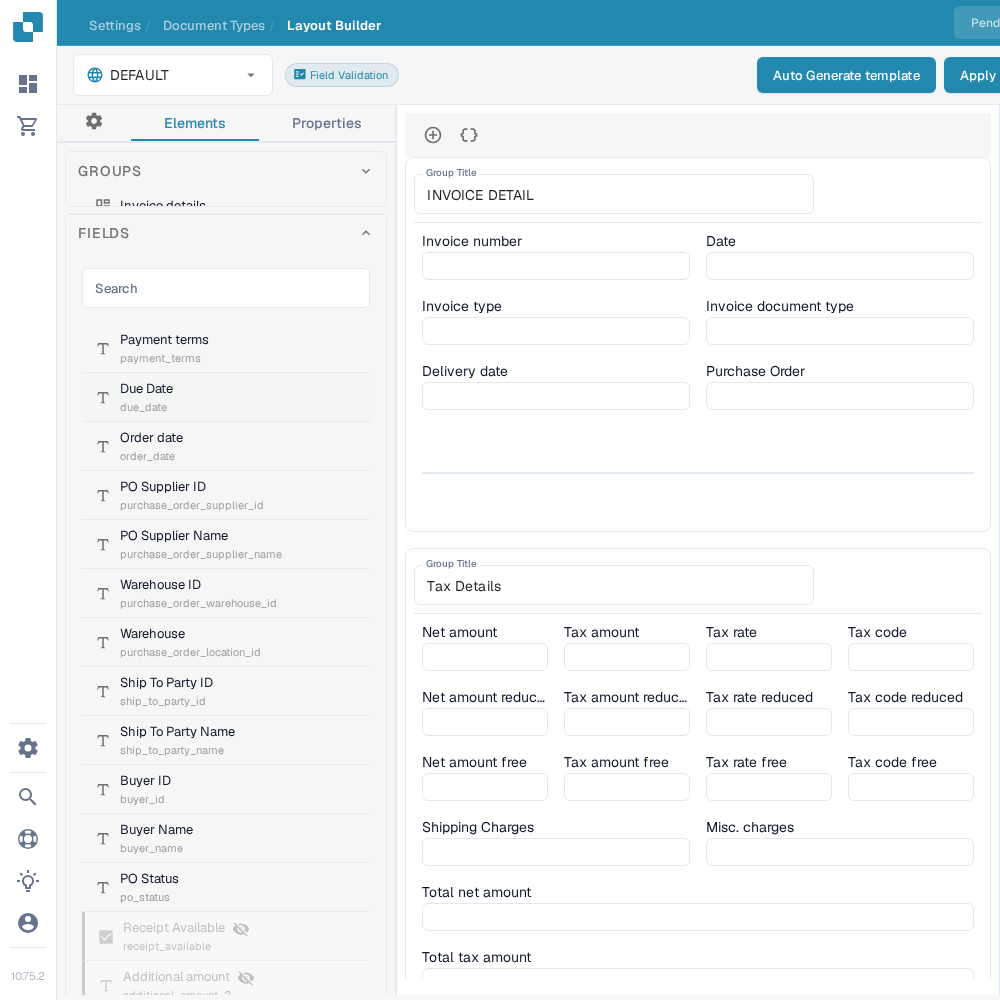

打开 **Fields** 查找可用的文档字段。如果列表较长，可使用搜索框，然后将字段拖到画布中的目标分组。已放入布局的字段在列表中可能会显示为不可用。

<figure><img src="https://1870485400-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlPczlNw8zzYNLfjfispX%2Fuploads%2Fgit-blob-63a236607758685a97b8d969bba1f9426992226d%2Fdbdc177-layout-fields-en.png?alt=media" alt="英文 Layout Builder 的 Fields 面板，其中包含搜索框和可用的 Invoice 字段"><figcaption><p>放置字段前，先搜索可用字段。</p></figcaption></figure>

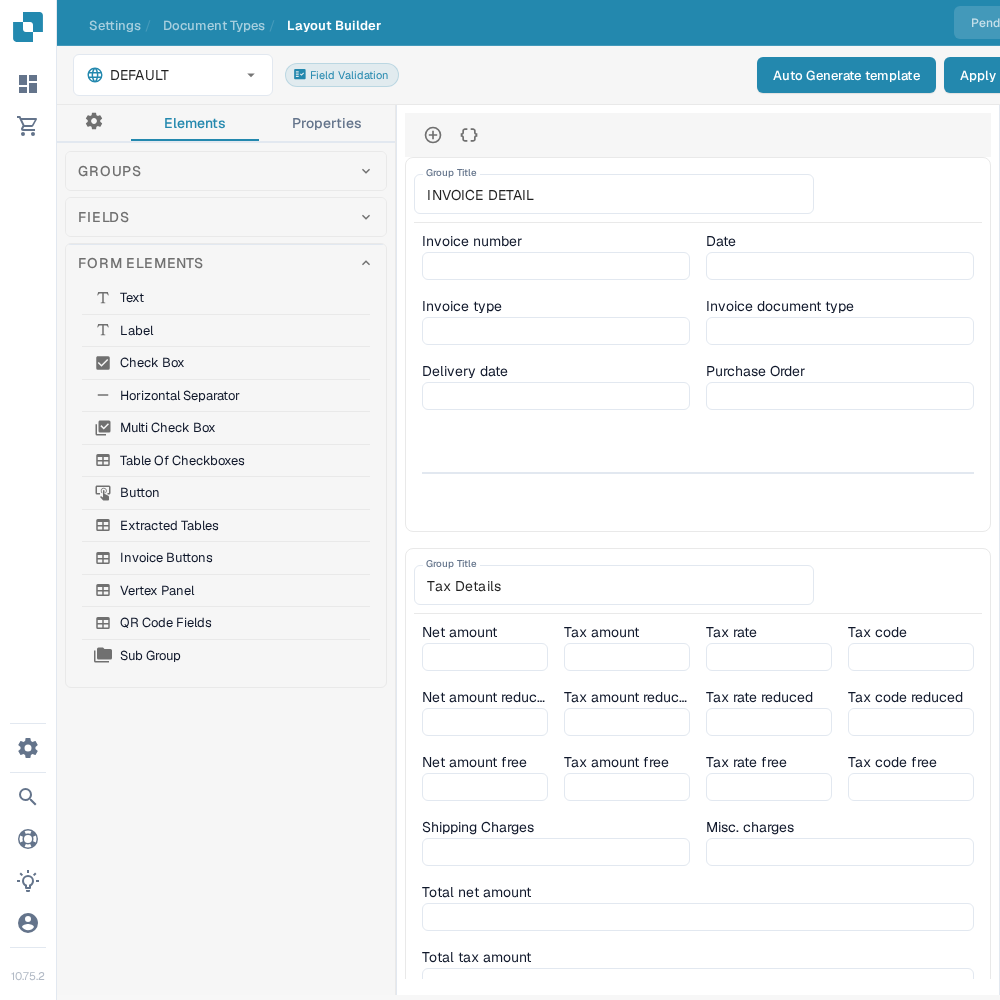

打开 **Form Elements** 查看 Text、Label、Check Box、分隔线、Button 和 Sub Group 等视觉控件。将所需元素拖到画布中，然后查看其 **Properties**。

<figure><img src="https://1870485400-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlPczlNw8zzYNLfjfispX%2Fuploads%2Fgit-blob-b833bc2e313d5c2e6c5a10373c907c12e4eb3439%2Fdbdc177-layout-form-elements-en.png?alt=media" alt="英文 Layout Builder 的 Form Elements 面板，列出文本、标签、复选框、按钮和子分组"><figcaption><p>当前的 Form Elements 工具栏。</p></figcaption></figure>

## 排列并保存

* 在画布中选择分组标题即可更改其标题。画布上方的 **+** 可添加分组；旁边的花括号图标会打开高级 JSON 分组表单。
* 将鼠标悬停在分组上，可使用复制 JSON、上移、下移、删除和拖动手柄等操作。要调整字段顺序，可在分组内或分组之间拖动字段。
* 在画布中选择字段以打开 **Properties**。字段上的删除图标会将其从此布局中移除。要配置验证、OCR 或匹配，请使用单独的[字段设置](/chinese/guan-li-yu-she-zhi/settings/global-settings/document-types/fields/configuring-field-properties-1.md)。
* 编辑完成后，在顶部栏中选择 **Save**。使用顶部栏中的其他操作（包括生成模板、默认模板以及将布局应用于来源）前，请参阅[保存并应用更改](/chinese/guan-li-yu-she-zhi/settings/global-settings/document-types/layout-manager/save-and-apply-changes.md)。


---
