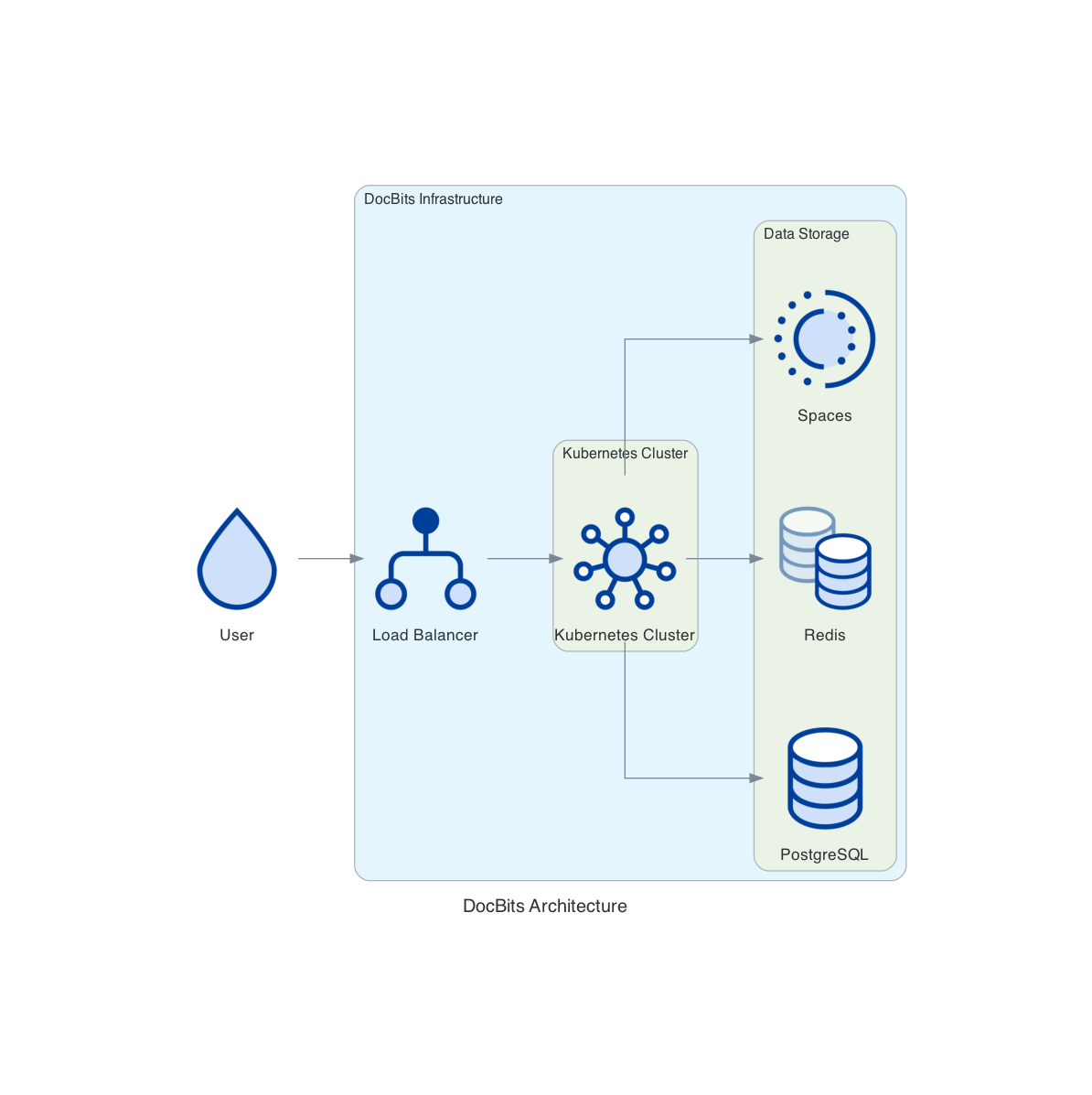

# 架构

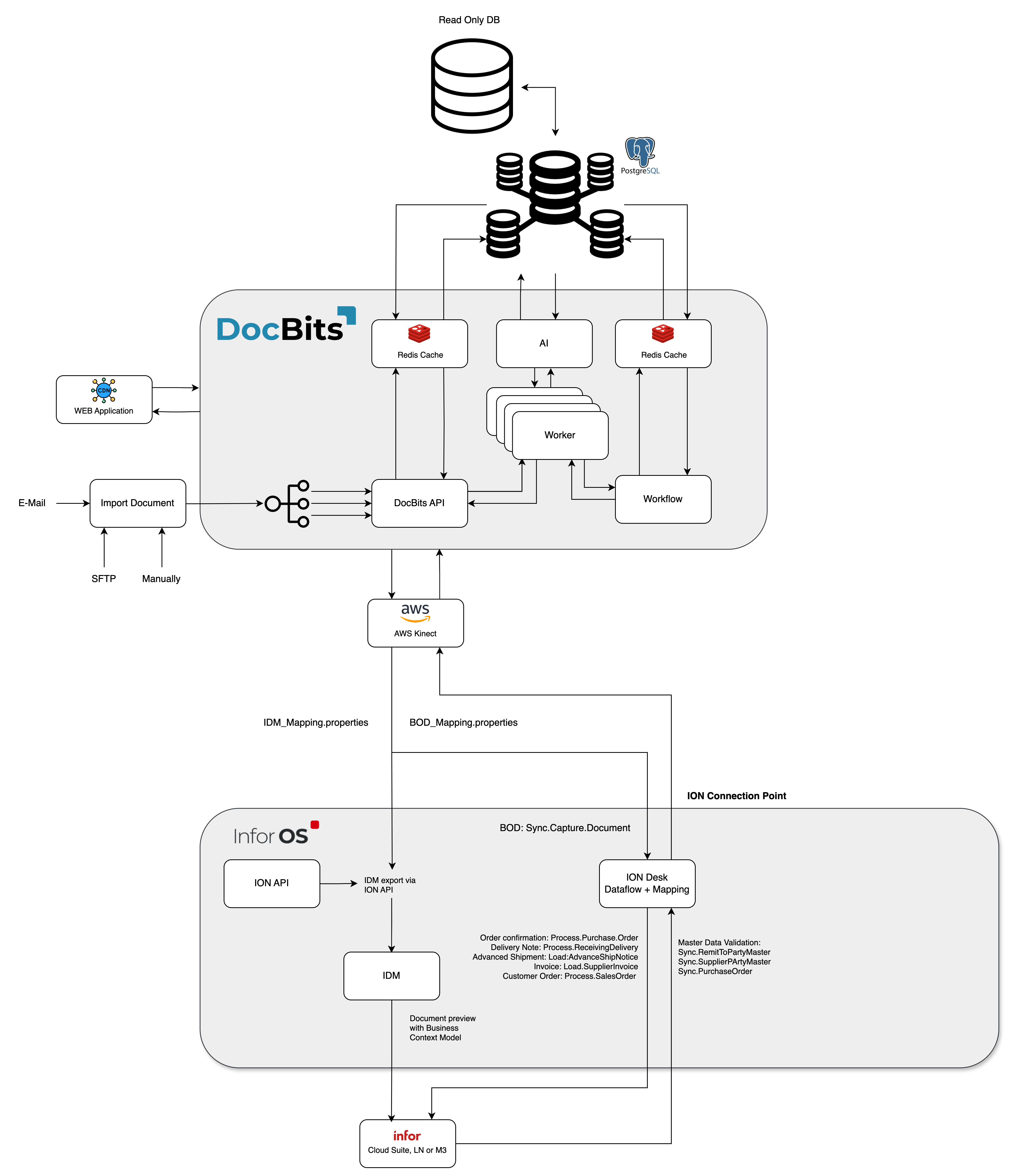

## **DocBits 云端客户**

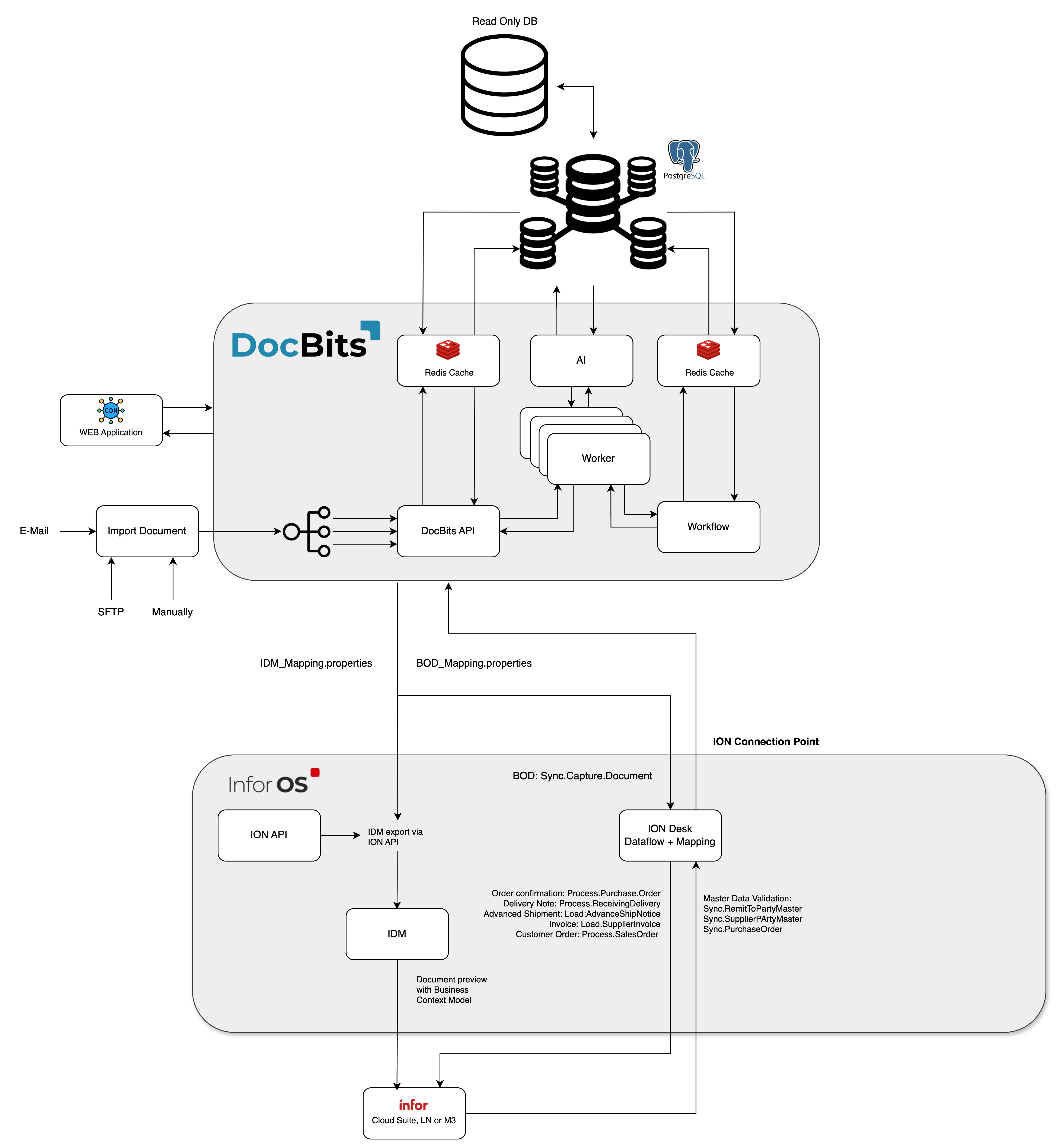

## DocBits 本地部署
Doc**Bits** 通过 ION API、ION Desk 和 Infor 标准 BOD 与 Infor LN/M3 无缝集成。通过 API 集成，我们可以将数据导出到 Infor，并在 Doc**Bits** 中执行主数据验证。

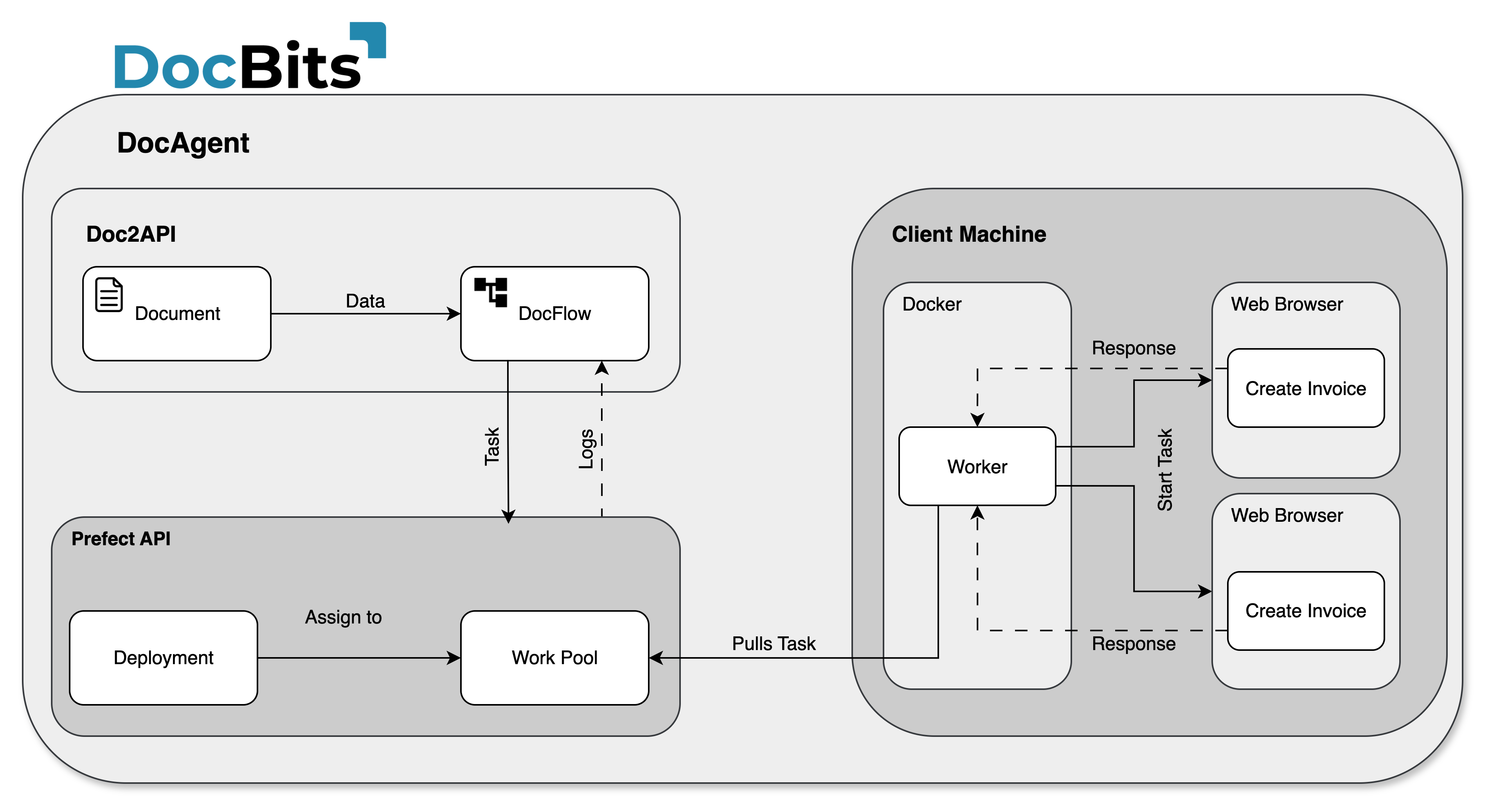

## **DocBits Operator 架构**
组件之间的所有连接均使用行业标准加密协议进行保护。SSH、HTTPS 和其他安全通道可确保整个系统中的数据完整性和机密性。
**本地部署：**
{% content-ref url="/pages/8SqgP3eZPk4m6qDmRMdn" %}
[Prefect 本地设置要求](/chinese/gai-shu-yu-ji-chu/architecture/prefect-local-setup-requirements.md)
{% endcontent-ref %}

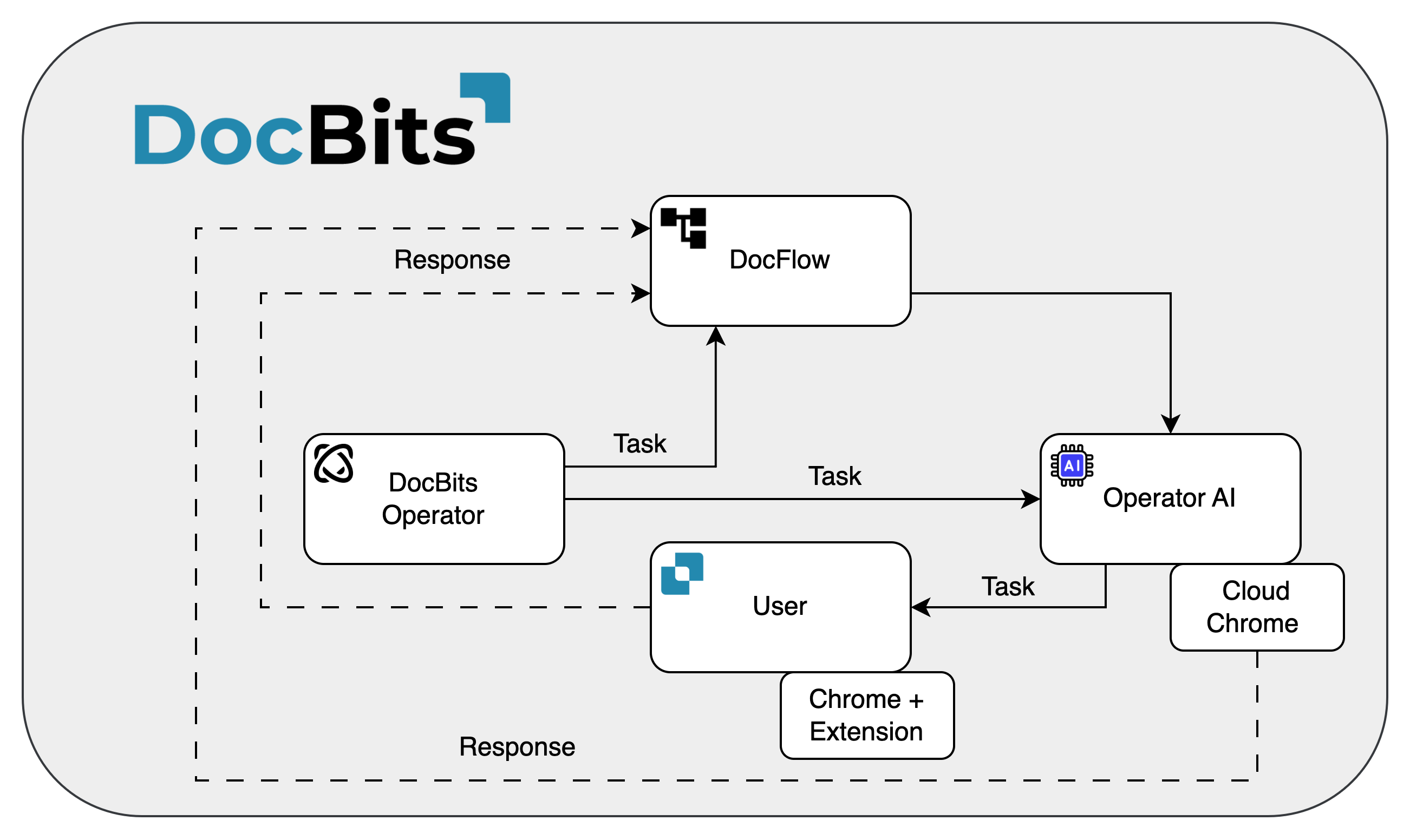

**云端**：
## 将数据导出到 Infor
我们使用 ION API 将带有属性的 PDF 发送到 IDM，并将 BOD Sync.CaptureDocument 发送到 ION Desk。在 ION Desk 中，我们根据正在处理的文档类型，将 [Sync.CaptureDocument](/chinese/infor-ji-cheng-yu-pei-zhi/exporting-in-docbits.md) 转换为所需的目标 BOD。随后，这些转换后的 Infor BOD 会自动导入 LN 或 M3。
{% hint style="info" %}
导出到 [Infor](/chinese/infor-ji-cheng-yu-pei-zhi/exporting-to-infor.md)
{% endhint %}
## 在 DocBits 中验证主数据
为识别供应商或比较/匹配采购订单行，我们会在 LN/M3 中激活一个触发器，将 Sync.RemitToPartyMaster、Sync.SupplierPartyMaster 和 Sync.PurchaseOrder BOD 发送到 Doc**Bits**。我们在 ION Desk 中配置此流程，将数据流定义到 Doc**Bits** 的特定连接点。
{% hint style="info" %}
[主数据验证](/chinese/infor-ji-cheng-yu-pei-zhi/importing-customer-master-data.md)
{% endhint %}

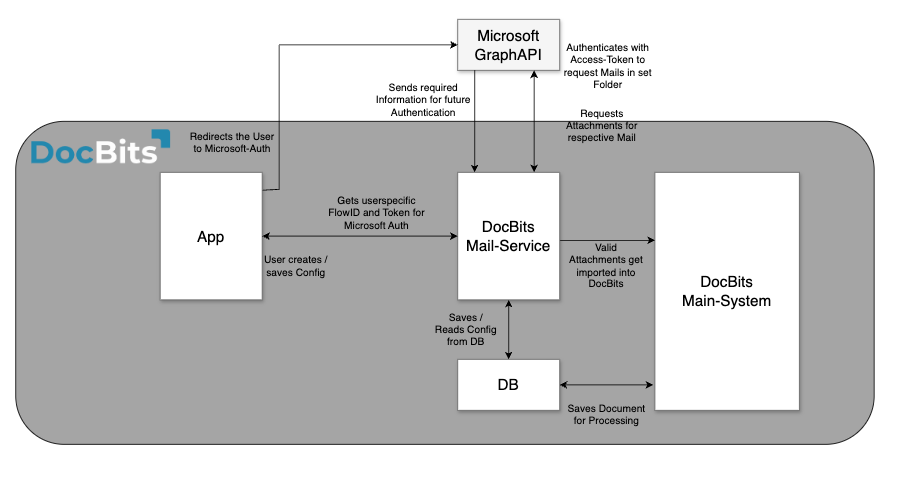

## 电子邮件导入 OAuth Office365
---
