SQL Access

Overview

In the DocBits settings module, administrators can directly access the BI database using SQL. This feature is designed for advanced data management and custom reporting needs.

Accessing SQL Direct Access

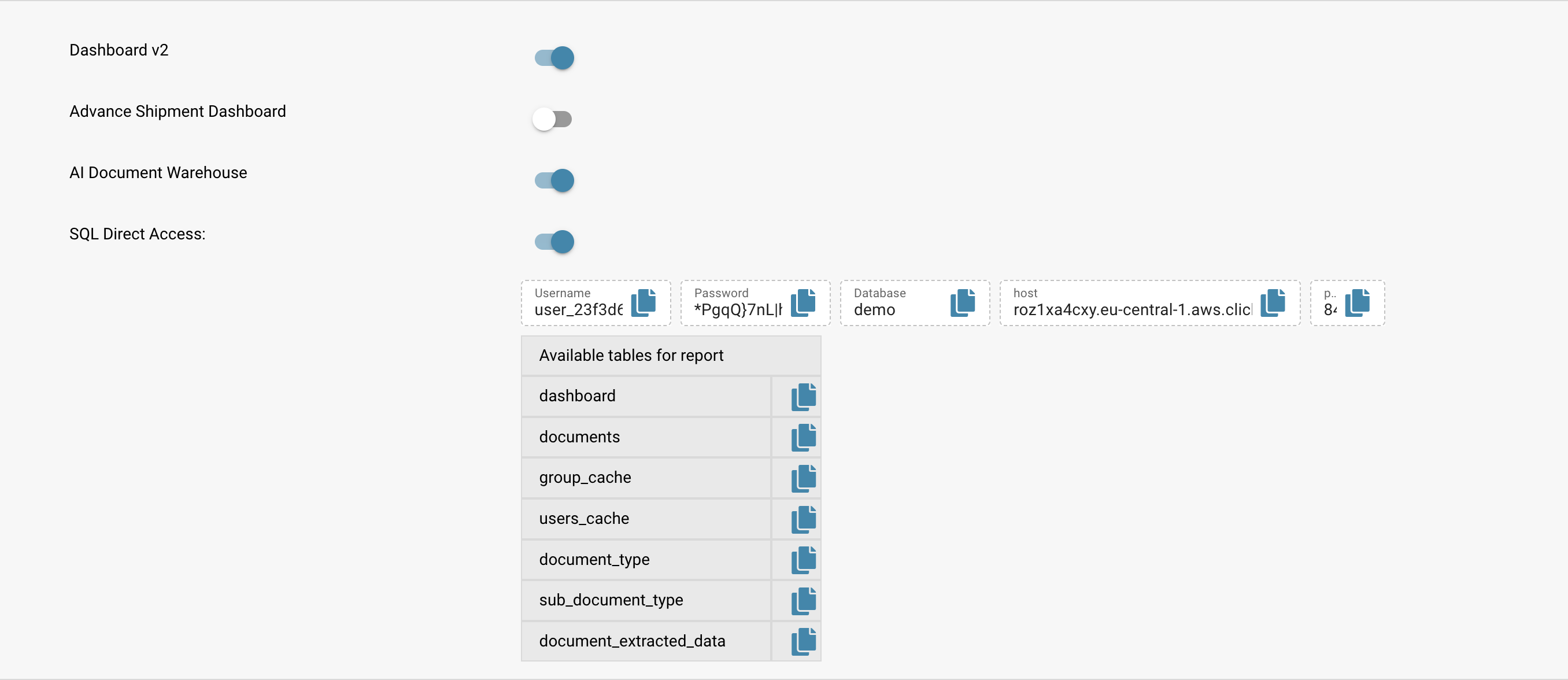

Navigate to the SQL Direct Access section in the settings module. Here, you will find credentials and access details, including username, password, database name, and host information.

• Username: user_23f3d6

• Password: Encrypted

• Database: demo

• Host: see in the Screenshot

Example Access Details:

SELECT
    COUNT(*),
    status,
    invoice_type
FROM dashboard
GROUP BY
    status,
    invoice_type

Results of a Sample Query

The following results display the number of documents by their respective status and invoice type:

• Ready for Validation: 71 Invoices, 6 unspecified

• Pending Confirmation: 1 unspecified

• Finished: 3 unspecified, 1 Invoice

• Error: 2 unspecified

Using clickhouse-client for Terminal Access

For developers preferring terminal usage, access can be established via clickhouse-client:

clickhouse-client --host <hostname_or_ip> --port <port> --user <username> --password <your_password> --database <database_name>

Creating Materialized Views

We recommend creating materialized views for pre-calculating data to enhance performance in analytics tools like PowerBI:

SELECT toStartOfWeek(created_on) as week_start, sum(toFloat64OrZero(field_value)) as total_sum
FROM document_extracted_data
WHERE field_name = 'total_amount'
GROUP BY week_start

This example shows how to group total amounts by the week they were created, which is useful for weekly financial summaries or audit trails.

Additional Resources

For further assistance or advanced configurations, please consult our support team or access our comprehensive video training available in the help section.
